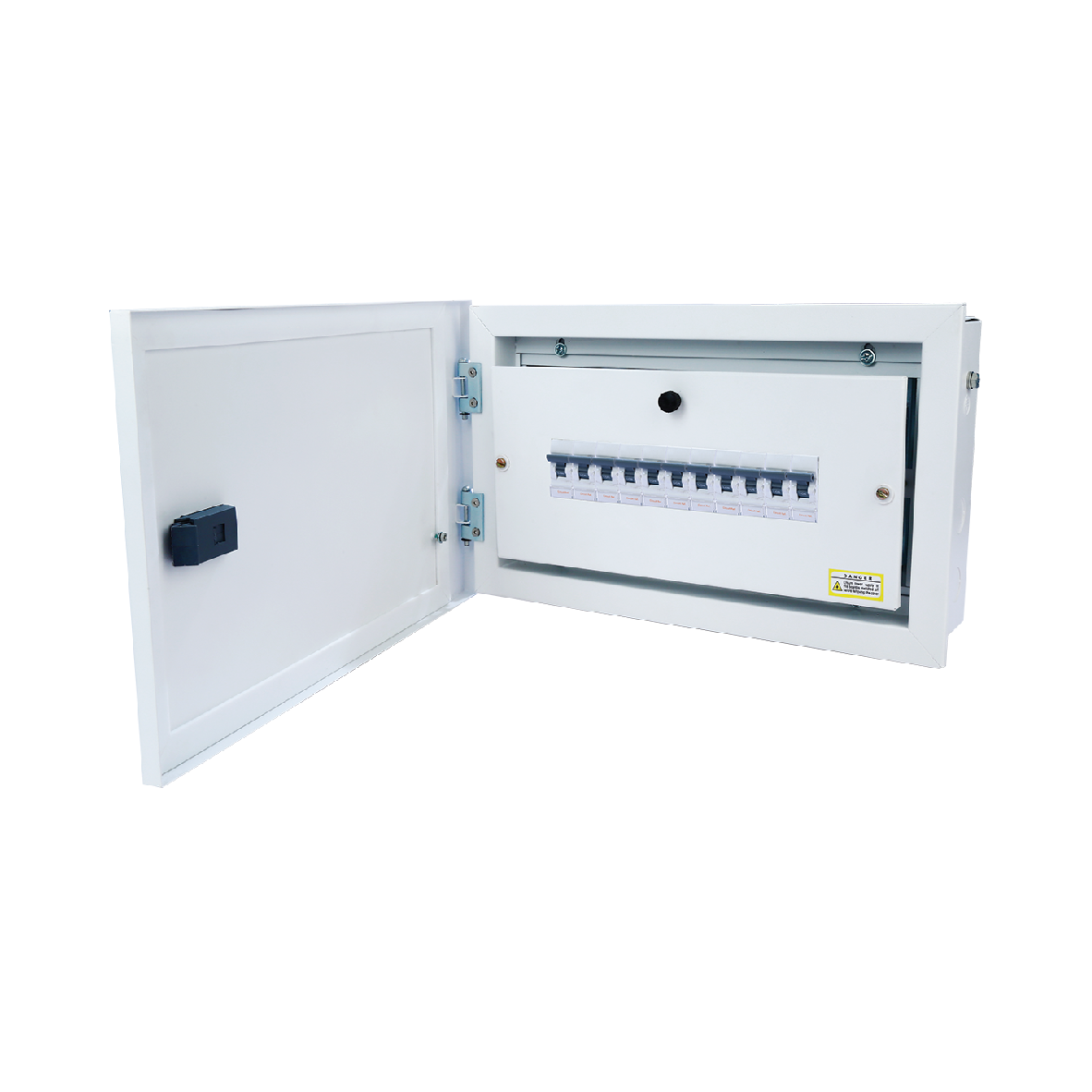

The 8-Way SPN Anti-Dust Distribution Board is engineered to provide safe, efficient, and durable electrical distribution across residential, commercial, and light industrial applications. Designed for 240 V AC, 50 Hz single-phase systems, it enables organized circuit management while ensuring high safety standards. The enclosure is constructed from 0.8 mm thick CRCA steel and finished with a high-quality powder coating, offering excellent mechanical strength, corrosion resistance, and long operational life. With an IP42 degree of protection, the distribution board protects internal components against dust ingress and accidental contact in indoor environments.

The DB is equipped with a 100A tin-plated copper bus bar, ensuring superior current-carrying capability, reduced electrical losses, and improved thermal performance. The nickel-plated brass neutral link and earth bar provide reliable grounding and enhanced resistance to oxidation, even under high humidity conditions. Built to withstand electrical faults, the distribution board features a short-circuit withstand capacity of 5 kA for 100 ms, ensuring operational safety and system integrity. The powder-coated DIN rail supports secure and easy installation of modular protective devices. With both surface and flush mounting options, the 8-Way distribution board offers installation flexibility to suit various site requirements. Fully compliant with IS 13032, IS 8623, and IEC/BSEN /BSEN/BSEN 60439-3, and supported by a 7-year warranty, it is a reliable and future-ready solution for modern electrical infrastructure.
